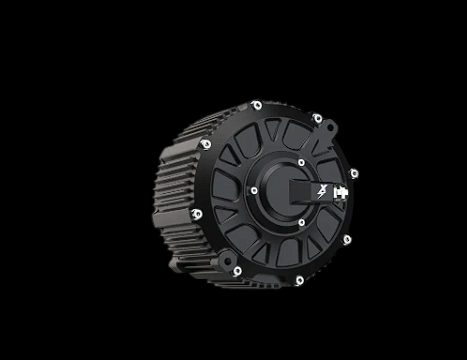

EBMX XLB-60 MOTOR

SERIOUS POWER. SMOOTH CONTROL. BUILT TO PERFORM.

Upgrade your electric bike with the EBMX XLB-60, a high-performance motor engineered for riders who want significantly more power, torque, and responsiveness than a stock motor. Its IPM rotor design and encoder-based position sensing deliver smooth throttle response and strong performance across the RPM range.

⚡ KEY SPECS

• Peak Power: Up to 35 kW

• Voltage Range: 48V–104V

• Motor KV: 95 KV

• Max RPM: Up to 13,000 RPM

• Max Phase Current: Up to 900A

• Peak Torque: Up to 52 N·m

• Stator: 60mm

• Motor Configuration: 10 poles / 12 slots

• Winding: Dual Y parallel

• Rotor: IPM

• Position Sensor: Encoder

• Maximum Winding Temperature: 180°C

• Efficiency: Up to 93%

• Waterproof Rating: IP67

• Weight: Approximately 10.5 kg air-cooled

• Warranty: 2 years

🔥 BUILT FOR PERFORMANCE

35KW PEAK POWER
Designed for serious electric motorcycle builds and high-performance riding.

ENCODER TECHNOLOGY
Precise rotor-position tracking provides smoother and more predictable throttle response than traditional hall-sensor systems.

IPM ROTOR DESIGN
Built for high-RPM performance while maintaining strong low-end response.

X-9000 READY
The XLB-60 was specifically designed and tuned to work with the EBMX X-9000 controller. It is not compatible with a stock OEM controller.

🏍️ COMPATIBILITY

Available configurations support compatible Sur-Ron Light Bee and E-Ride Pro applications. Bike-specific harnesses and mounting hardware may be required.

35KW • 95KV • 13,000 RPM • ENCODER • IP67

High-performance motor. Proper battery, controller, wiring, gearing, and tuning are required. Specifications can vary by XLB-60 version and configuration.
