EBMX X-9000 V3 CONTROLLER

UNLEASH YOUR BIKE'S FULL POTENTIAL.

The EBMX X-9000 V3 is a high-performance motor controller designed for serious electric motorcycle builds. With up to 50 kW rated power, 1,000A continuous phase current, and 1,600A burst phase current, the X-9000 V3 gives riders an advanced platform for power, control, and customization.

⚡ KEY SPECS

• Rated Power: 50 kW

• Phase Current: 1,000A continuous / 1,600A burst

• Input Voltage: 40–120V

• Working Voltage: 48–110V

• Control: Field-Oriented Control (FOC)

• Firmware: EBMX VESC-based firmware

• MOSFETs: 30 × 120V Infineon MOSFETs

• Efficiency: Over 95% maximum

• Operating Temperature: -25°C to 80°C

• Protection: IP67-rated CNC alloy case

• I/O: 68 I/O connections

• Built-In IMU: Wheel-lift control

• Bluetooth: Included

• App Support: EBMX X-Series App

• Warranty: 2 years

🔥 PERFORMANCE FEATURES

6 CUSTOMIZABLE POWER LEVELS
Tune your bike for different riding conditions with customizable Race and Street modes.

ADVANCED THROTTLE CONTROL
FOC technology provides smooth, precise motor control and customizable throttle response.

BUILT-IN WHEEL-LIFT ASSIST
The integrated IMU allows programmable wheel-lift control for launch, stunt, and anti-rotation applications.

CUSTOM TUNING
Use the EBMX X-Series App for setup, live tuning, diagnostics, and firmware updates.

30+ MOTOR TUNES
The X-9000 V3 comes with preloaded support for more than 30 compatible motors.

🏍️ COMPATIBILITY

The X-9000 V3 supports a wide range of builds, including compatible Sur-Ron Light Bee, Sur-Ron Ultra Bee, Talaria MX3/MX4/MX5, Talaria XXX, E Ride Pro, ReRode R1, QS, KO, Sotion, and EBMX motors. Specific harnesses and mounting solutions vary by bike.

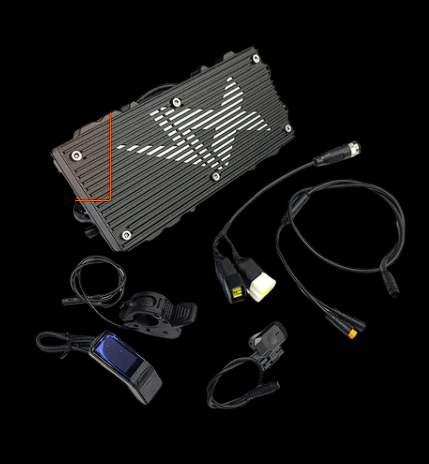

📦 KIT INCLUDES

• EBMX X-9000 V3 Controller

• Air-Cooled Heat Sink

• SW102T Display

• Regen Thumb Throttle

• Bluetooth Module

• 2-to-1 Harness

• Hardware

Water-cooled heat sink, displays, and bike-specific mounting/fit kits may be optional depending on the configuration.

⚡ BUILT FOR SERIOUS BUILDS

50 kW • 1,000A CONTINUOUS • 1,600A BURST • FOC • IP67 • BLUETOOTH • CUSTOM TUNING

The X-9000 V3 is designed for high-performance electric motorcycle applications. Proper battery, motor, wiring, cooling, and configuration are required to safely utilize its capabilities.
